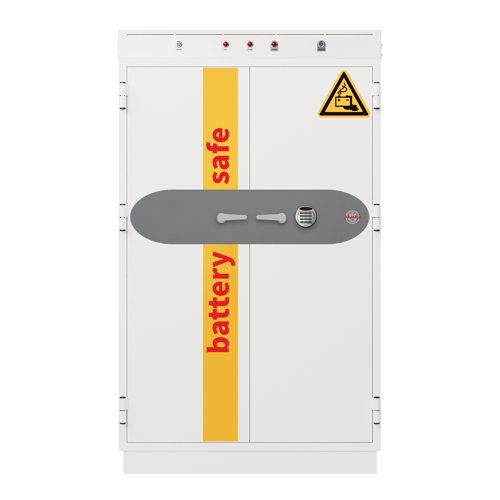

Phoenix Battery Commander Pro BS1946E Size 6 Battery Storage & Charging Safe with Electronic Lock

Phoenix Battery Commander Pro BS1946E Size 6 Battery Storage & Charging Safe with Electronic Lock

BS1946E

1

THE PHOENIX BATTERY COMMANDER PRO SERIES is certified to VDMA 24994:2024-08 standard by ECB.S and constructed to safeguard both lives and property from the potentially catastrophic consequences of Lithium battery fires. Providing a secure storage and charging solution tailored for Lithium-Ion batteries, these units mitigate the myriad of risks posed by such batteries, including thermal runaway due to temperature fluctuations, impact, or manufacturing defects. Such hazards can lead to spontaneous ignition and formidable fire outbreaks, that pose significant challenges for extinguishment.
The Battery Commander Series ensures peace of mind through its sturdy double-wall construction, certified for fire resistance, impact resistance, and security. UK Police approved (Secured By Design scheme).
Integrated smoke detectors, reinforced insulated shelving, and built-in power outlets. Furthermore, this range includes a plinth for effortless relocation and removal from the premises in case of a fire emergency.

Your Price: £15,156.00 exc VAT

£15,156.00 exc VAT

Description
Specifications
Resources
  • SUITABLE FOR – The storage and charging of all Lithium Ion batteries up 25kgs, such as – power tools, garden tools, e-bikes/scooters, drones, laptop, mobile phone. Maximum storage capacities are listed in the table.
  • FIRE PROTECTION (INSIDE TO OUTSIDE) – for a maximum single battery of 2500Wh and total capacity of 19000Wh. FIRE PROTECTION (OUTSIDE TO INSIDE) – Tested to EN 14470-1 – Fire protection for 90 minutes from outside to in. NT Fire 017-120p certified – Fire protection for 120 minutes from outside to in.
  • CHARGING –Safely charge your Lithium batteries using the fitted power points – 4 x 8 gang PDUs, 32 sockets, with the option to add further PDUs to the pre-wired control box. Always check with your electrician to be sure not to overload your 13amp mains supply. Further 13 AMP Mains Supply or Three Phase can be added (POA).
  • VENTILATION – Fitted as standard with air exhaust duct, for added ventilation. Dedicated ducting to the outside is also strongly recommended for the most secure and safe extraction in the event of thermal runaway. DROP TEST – Fire and impact tested from 9.1 metres for resistance to the impact of falling through the burning floors of a building. SHELVING – Supplied with reinforced and insulated height adjustable shelves capable of carrying 100kg at a time.
  • INTERNAL TEMPERATURE MONITOR – For safety, the cabinet comes as standard with an external temperature warning lamp, that gives an early warning of a potential issue with a battery overheating. In the event of excessive heat inside the cabinet, the control unit immediately cuts power to chargers and sounds an alarm. DOOR ALARM – The doors are fitted with sensors to prevent the doors being left open. In the event the doors are left open, the power will be cut, and no charging will take place. A buzzer will also sound to warn you. FIRE ALARM CONNECTION – The control unit can be connected to the building fire alarm to trigger the building system and alert the fire brigade. SIREN & STROBE – The unit is fitted with a siren and strobe light that is triggered in the event of overheat or thermal runaway. Power to the cabinet will also be cut and no charging will take place until the cabinet is back in normal working range.
  • MULTIPOINT LOCKING – Fitted with an advanced reinforced multipoint locking system that securely seal the doors. Even in the event of the most severe battery explosion, the doors will remain securely closed. Fitted with an advanced high security electronic lock with clear LED display, dual control, hidden code and scrambled code that can be programmed as standard. The lock can further be upgraded to incorporate multiple user audit trail so that user’s usage can be monitored.
  • CONSTRUCTION – Double wall safe construction with internal fill of our patented Styronite F insulation, provides a cabinet Safe of great strength and fire/heat resistance, for maximum protection against internal explosion caused during thermal runaway. PLINTH – to allow easy movability and removal from the building in the event of a fire situation. The plinth is supplied with a front cover to provide a neat exterior finish. 2 YEAR GUARANTEE – Two year materials and labour warranty.
  • OPTIONAL FEATURES - SP Safe Monitor - For enhanced safety, the cabinet can be fitted with internal temperature and humidity monitor, that links to a mobile phone App and alerts you if the maximum set temperature is breached. Fire Suppression - Specially formulated condensed aerosol fire extinguishing for rapid and effective fire suppression, specifically designed for Lithium Ion batteries.
Battery Included Yes - 4 x AAA
Brand Battery Commander Pro
Capacity 569 Litres
Cash Rating Overnight: £2,500.00
Charging Points Yes
Colour White
Dimensions (WxDxH) 1125x710x1910mm
Drop Tested Yes
Fire Rating - Digital Media 60 Minutes
Fire Rating - Paper 120 Minutes
Form Lithium Battery Safe
Internal Dimensions 945x400x1505mm
Lock Type Electronic Lock, 4-16 Digits
Manufacturer Phoenix
Material Steel
Number Of Shelves 4 Adjustable Shelves
Type Battery Storage Safe
Valuables Cover Overnight:£25,000.00
Warranty 2 Year Materials and Labour Warranty & Free Lifetime 'After the Fire' Replacement Warranty
Weight 610kg
